What is a Debug Console?

A debug console is a tool used by developers to recieve information output from a program. They are typically also used to run commands and execute arbitrary logic for testing or debugging purposes. In game development, they can be especially useful in manually running certain code or setting certain values for speedy testing. In this post, I'm going to be making a debug console for my game built on UnityEngine called Tempus Vein. Although most of the code here is specific to Unity, the actual command processing techniques can be very easily adapted to run inside a CLI application. Unity Editor does have a built in debug console which outputs log messages inside the editor. You can make this console appear in game using the legacy GUI system. However, it doesn't have a way to execute commands. I want a way to execute commands to affect the game in some way, so this post will be outlining how I achieved this.

Creating a UI window

We first need a way to see messages in the debug console.

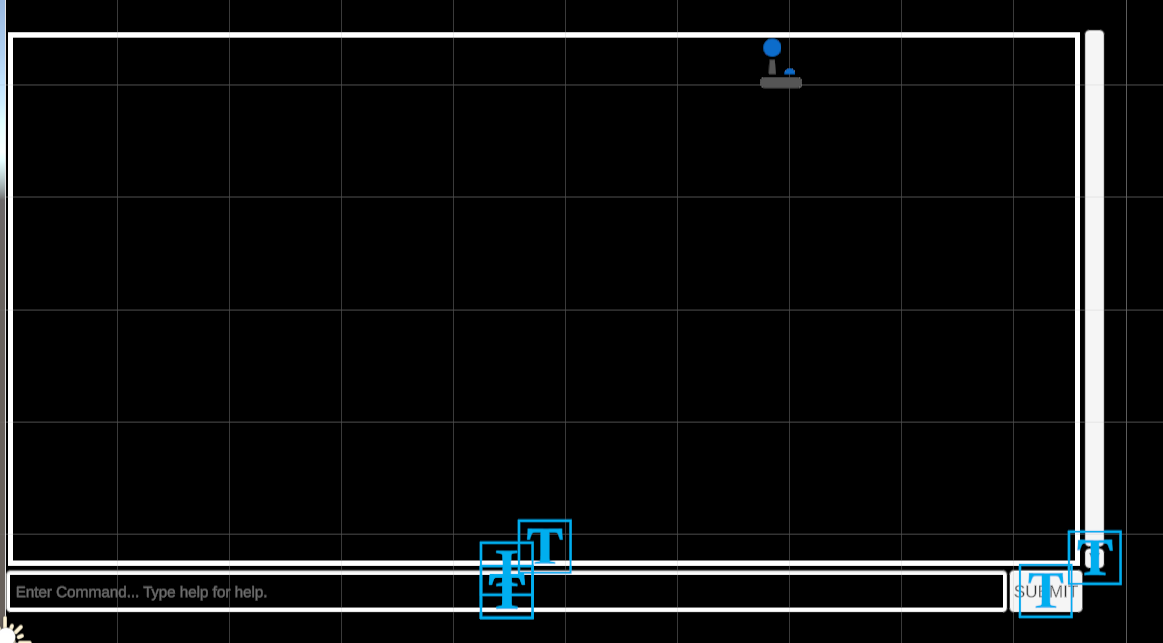

Here is the UI I've created for my console. It is a ScrollRect component with a text area, a command input field, scroll bar, and submit button. When a message gets logged it will be appended to the window's text cache and will show up at the bottom of the window.

Input and Output Structure

Unity has a built in logging feature with the static Debug class. All we need to do is get Unity to send it's logging messages to our console window. This is extremely easy to do since Unity's API has provided an event specifically for outputting log messages. Documented here. All that we have to do is subscribe to the event, then interpret the message.

I've separated the work into two classes. The first class, GameConsole handles keeping the log, the commands, and executing commands. The second class is ConsoleWindow which is responsible for displaying the logs and sending user input to be interpreted by the GameConsole class.

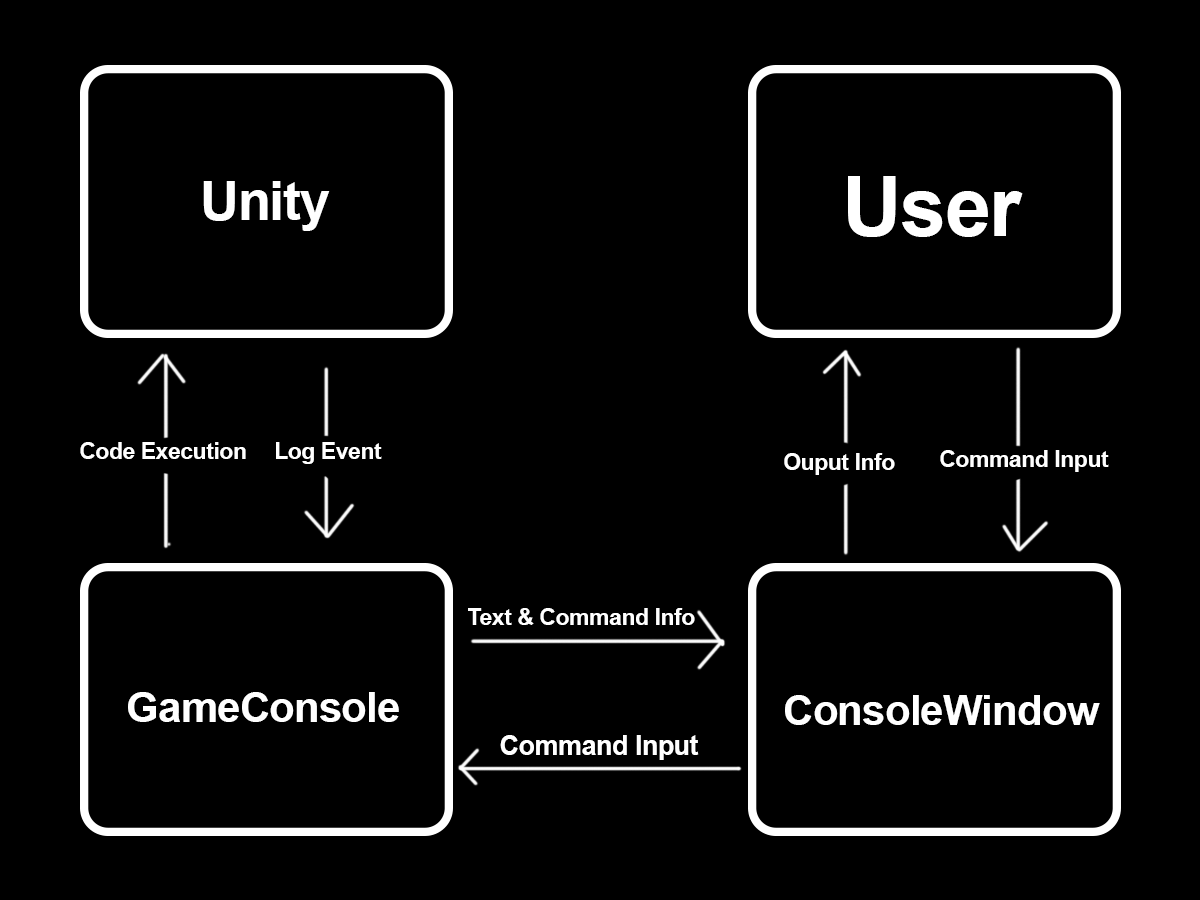

This is the structure and flow of the console logic. Starting from the User, the user will input a raw text command. After the command is entered by the user, it will be sent by the ConsoleWindow to GameConsole to be interpreted into a command for processing. If the console can resolve a raw command into a command, the command is then executed. Working in reverse for log messages, Unity will output a log event. Then GameConsole will interpret the log event into our custom LogMessage type, then store it in the current session log and invoke its own log event. The ConsoleWindow being subscribed to this log event will then add the message contents to its local cache and display it to the User with text.

Commands

After getting logging output set up, we have to build commands to be used with the console. Ive created an abstract class called Command to supply a simple foundation for expanding with logic. The simple command structure is to have a name field that acts as the commands identifier and a method called Execute that takes a string array as a parameter and returns a True/False value. The parmeters of course will act as the command arguments. The return value indicating if the command was executed successfully or not.

With this structure we can do just about anything with just the one method. We can create subclasses of the command class that have their own implementation of code when executed. I've gone a few steps further and added fields for expected command arguments, subcommands, a description, usage guidelines, etc. This allows for insane flexibility with what commands can do.

Runtime Command Generation

One of the commands I've created called "dyn" generates commands for public static methods at runtime. Using reflection, it scans the game's assembly's types for public static methods. Once it locates a suitable method, it will generate an subcommand that executes the method. The dyn command uses a subclass of command called Dynamic Command, which more or less is just an empty Command class with public backing fields that will be accessed by the overriden methods. Instead of executing concrete code, it will execute an Action delegate that can be assigned to it.

Auto-Complete Suggestions

I also added auto-completion to commands. When a ConsoleWindow subscribes to the GameConsole's log events it also gets the entire command tree registered with the GameConsole. Then it recursively caches each command's name, subcommands, and arguments as string data. When a user starts typing, the ConsoleWindow will match whatever the user typed to its cache of command information. If it finds a part of the incomplete string it will then display a guess of what command or subcommand the user is typing.

Final Result
